Stage4: Memory Stage

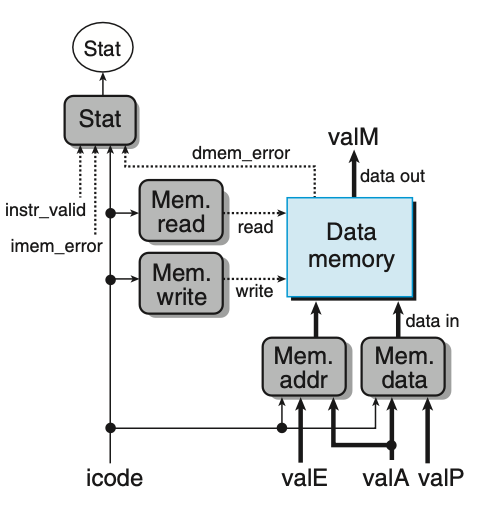

Figure 4.30 Memory stage

Control logic for Execution stage.

instruction	Mem. read (1: read)	Mem. write (1: write)	Mem. addr (valE/valA)	Mem. Data (valA/valP)
halt
nop
rrmovq rA, rB
irmovq V, rB
rmmovq rA, D(rB)
mrmovq D(rB), rA
OPq rA, rB
jXX Dest
cmovXX rA, rB
call Dest
ret
pushq rA
popq rA
